Product Details
Product Display

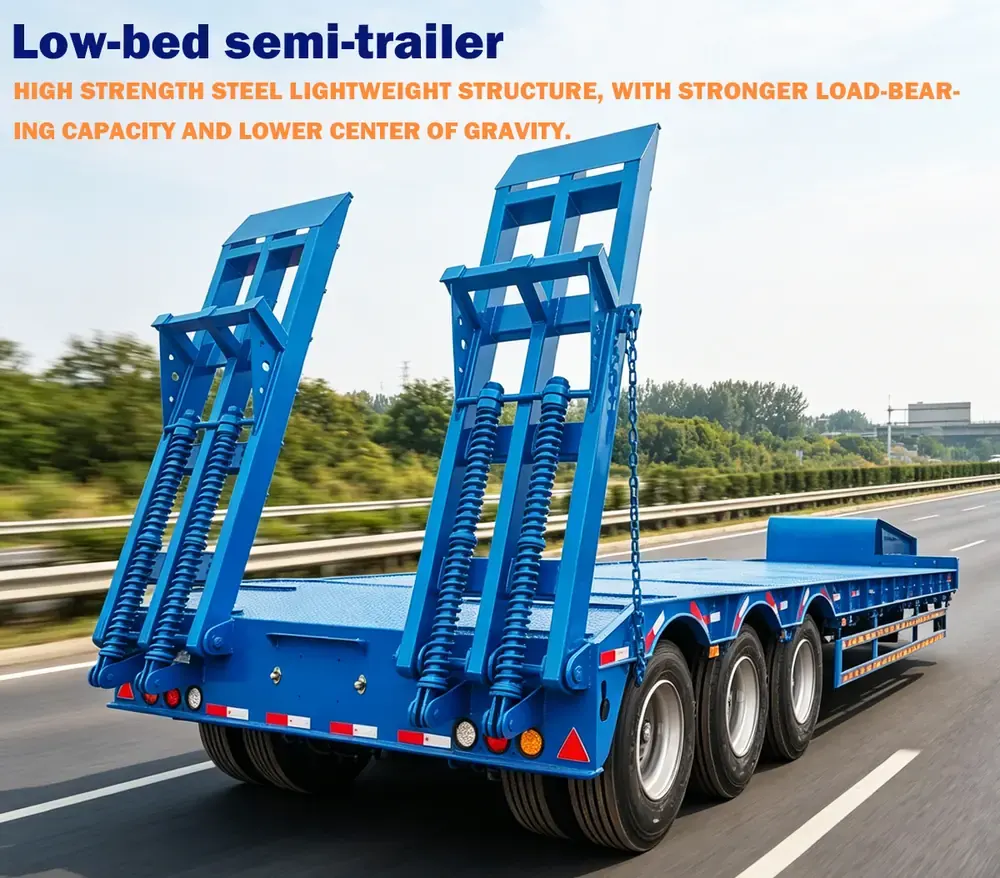

Our 3 axles 40ft low bed semi trailer is a heavy-duty transport solution engineered to safely haul oversize and heavy equipment like excavators, bulldozers, and cranes. Built with high-strength steel and equipped with robust hydraulic ramps, it delivers exceptional stability, durability, and load capacity for long-haul and off-road applications.
Product Parameters
| Item | Specification |
| Model | 3 Axles 40ft Low Bed Semi Trailer |
| Overall Dimension | 12500mm × 3000mm × 3500mm |
| Deck Length | 12000mm (40ft) |
| Loading Capacity | 60-80 Ton |
| Axle Quantity | 3 units (Fuwa/BPW optional) |
| Suspension | Mechanical spring / Air suspension optional |
| Tire | 12 units × 11.00R20 or 385/65R22.5 |
| Material | Main frame: Q345 high-tensile steel |
| Ramp Type | Spring-assisted hydraulic ramps |
| Kingpin | 2" or 3.5" (optional) |

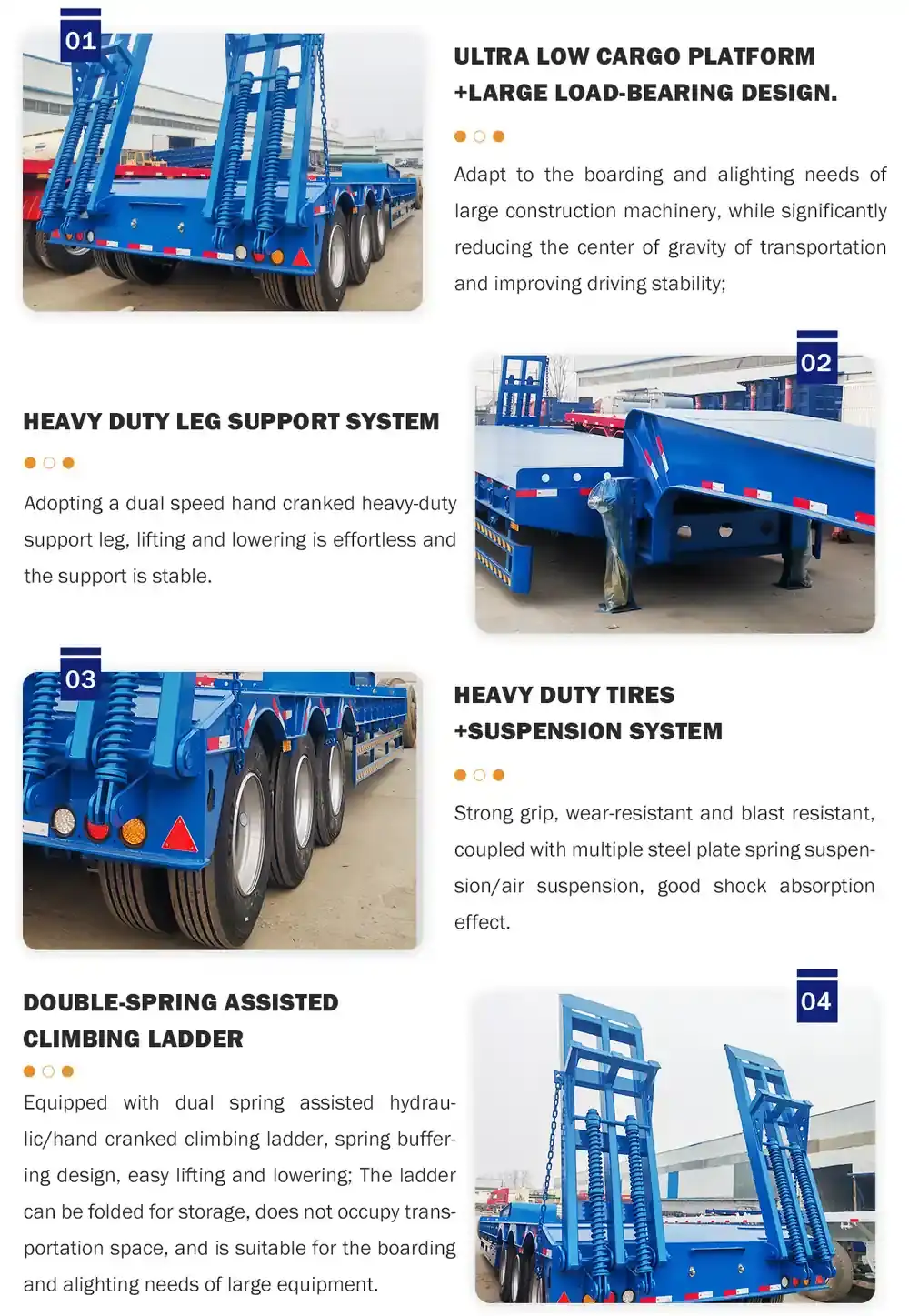

Product Details

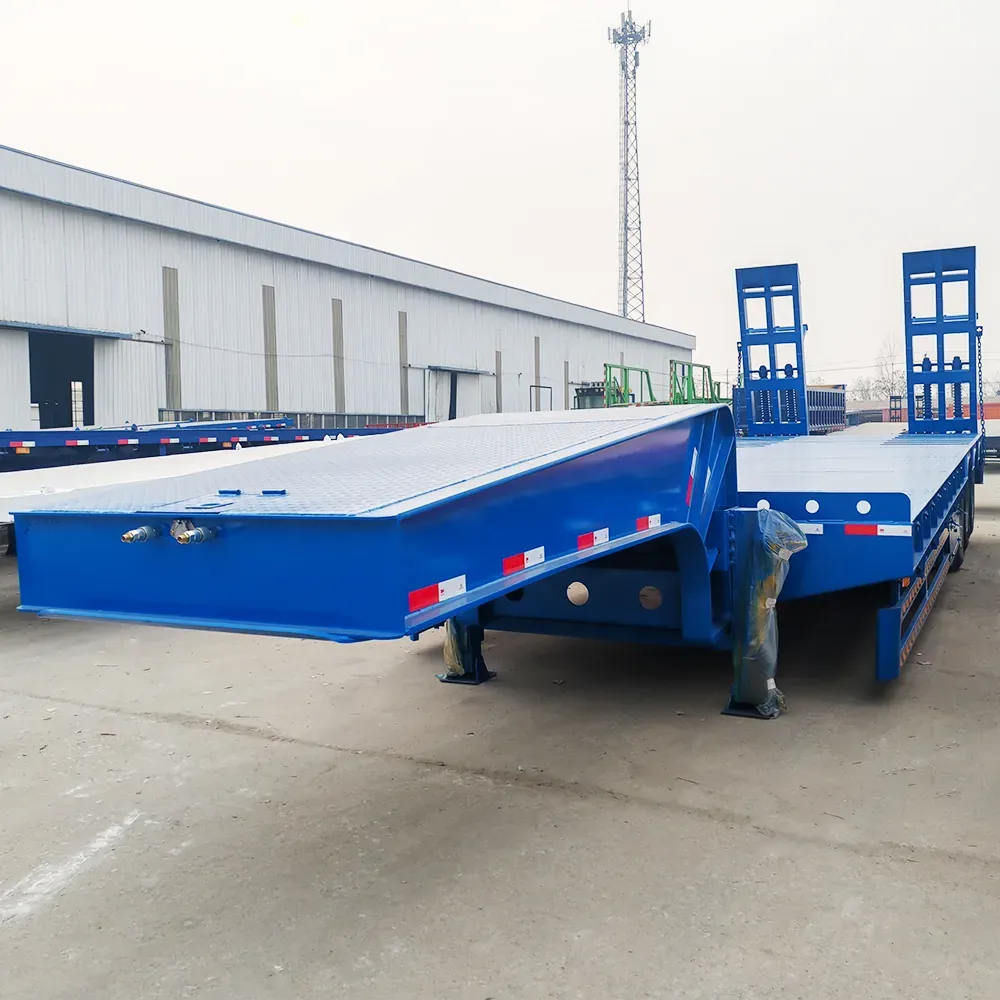

Ultra low cargo platform +large load-bearing design.
Adapt to the boarding and alighting needs of large construction machinery, while significantly reducing the center of gravity of transportation and improving driving stability;
Heavy duty leg support system
Adopting a dual speed hand cranked heavy-duty support leg, lifting and lowering is effortless and the support is stable.
Heavy duty tires +suspension system
Strong grip, wear-resistant and blast resistant, coupled with multiple steel plate spring suspension/air suspension, good shock absorption effect.
Double-spring assisted climbing ladder
Equipped with dual spring assisted hydraulic/hand cranked climbing ladder, spring buffering design, easy lifting and lowering; the ladder can be folded for storage, does not occupy transportation space, and is suitable for the boarding and alighting needs of large equipment.

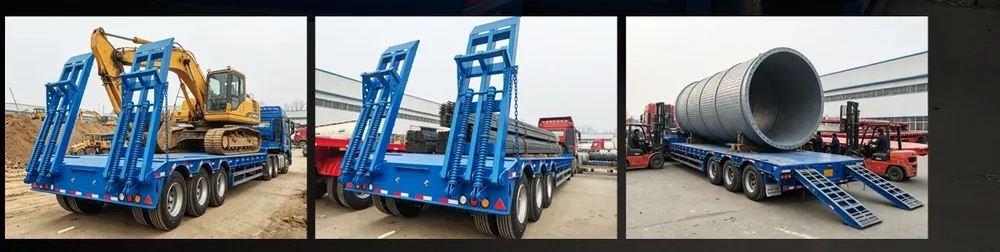

Product Application
Suitable for all types of construction machinery such as excavators, loaders, rollers, as well as large-scale equipment and special cargo transportation; ultra-low platform + high-strength steel heavy-duty structure for strong load capacity and stable driving; anti-slip ramps + multi-axle for convenient loading and safe durability. Customizable size and configuration to meet the needs of engineering transfer,port transportation, infrastructure transportation and other scenarios, a reliable choice for engineering logistics transportation.
Packaging And Transportation
Flat Rack Container Shipping：Protects the trailer from damage during sea transport, suitable for 1-2 units per flat rack.
Ro-Ro (Roll-on/Roll-off) Shipping：No disassembly required, quick loading/unloading, ideal for multiple trailers in one shipment.
Bulk Vessel Shipping: Cost-effective for large orders, high flexibility in loading arrangements.
Customer Visits
We have built long-term partnerships with over 1,000 customers from more than 100 countries worldwide. Our global clients trust our low bed semi trailers for their reliable performance and quality. These photos reflect our commitment to providing professional service and customized solutions to meet diverse market needs.
Certificate
Our low bed semi trailers are certified with ISO 9001 and 3C standards, ensuring full compliance with international quality and safety regulations. As a certified manufacturing enterprise, we strictly control every production process to guarantee product reliability and export eligibility, giving you peace of mind for every order.
FAQ
1.who are we?
We are based in Shandong, China, start from 2016,sell to Africa(49.40%),Southeast Asia(29.10%),South America(4.60%),Mid East(4.00%),South Asia(2.90%),Domestic Market(1.60%),Eastern Asia(1.40%),Oceania(1.00%),North America(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Flatbed Trailer,Low Bed Trailer,Skeleton Trailer,Fuel Tanker Trailer,Bulk Cement Trailer,Dump Trailer,Fence Trailer
Dump Truck,Tractor Truck,Concrete Mixer Truck,Fuel Truck,Water Truck,Mechanical Equipment And Semi-Trailer Parts For Trucks, Etc.
4.Why should you buy from us not from other suppliers?
We company is located in the superior environment of Jinan,Shandong province. We company has advanced production processing equipment to ensure the quality of the products!And we company's products are exported to overseas countries at present with a good prospects.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
