3 Axle Side Wall Trailer
Explore our heavy-duty 3 axle side wall trailer with robust build, reliable axles & Triangle tires. Ideal for cargo transport. Inquire for full specs now!
3 Axle Side Wall Trailer
- Home
- > Products
- > Trailer
- > Side Wall / Fence Trailer
- > 3 Axle Side Wall Trailer
3 Axle Side Wall Trailer
Send Inquiry
Chat Now
Product Details
Product Display

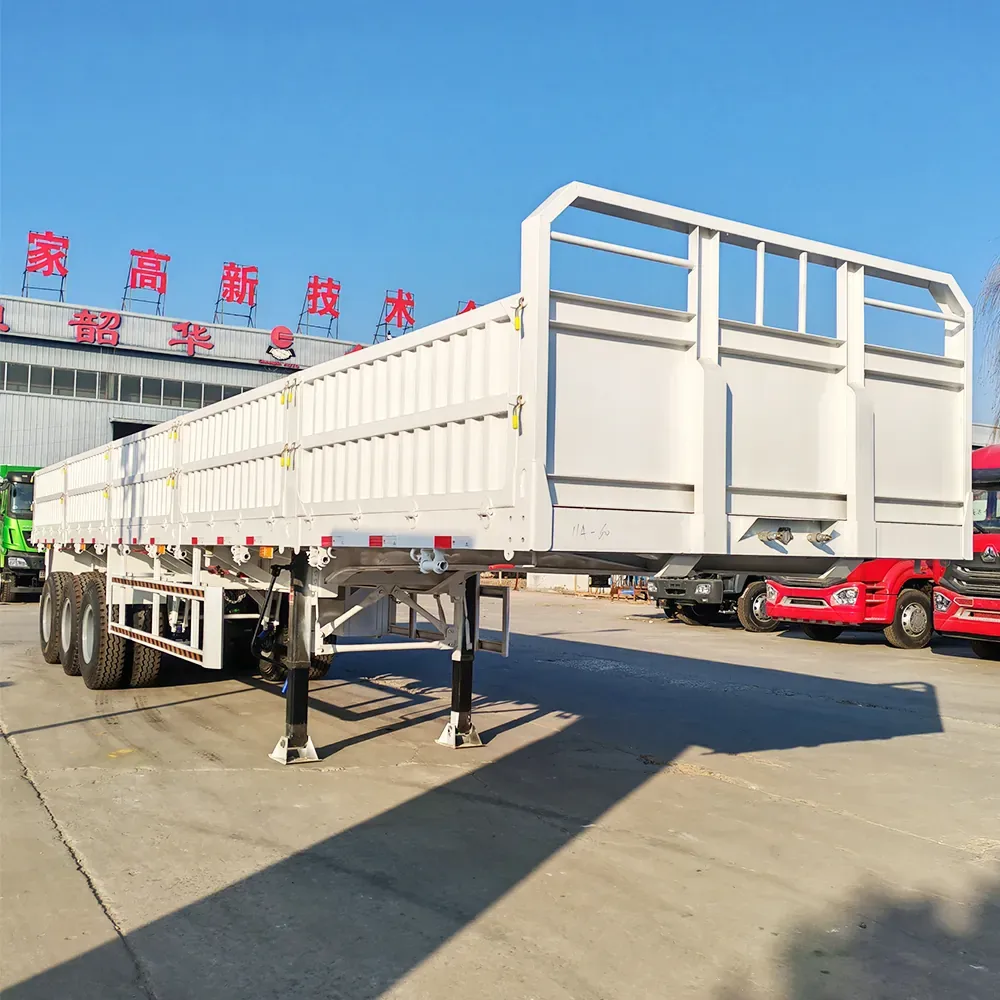

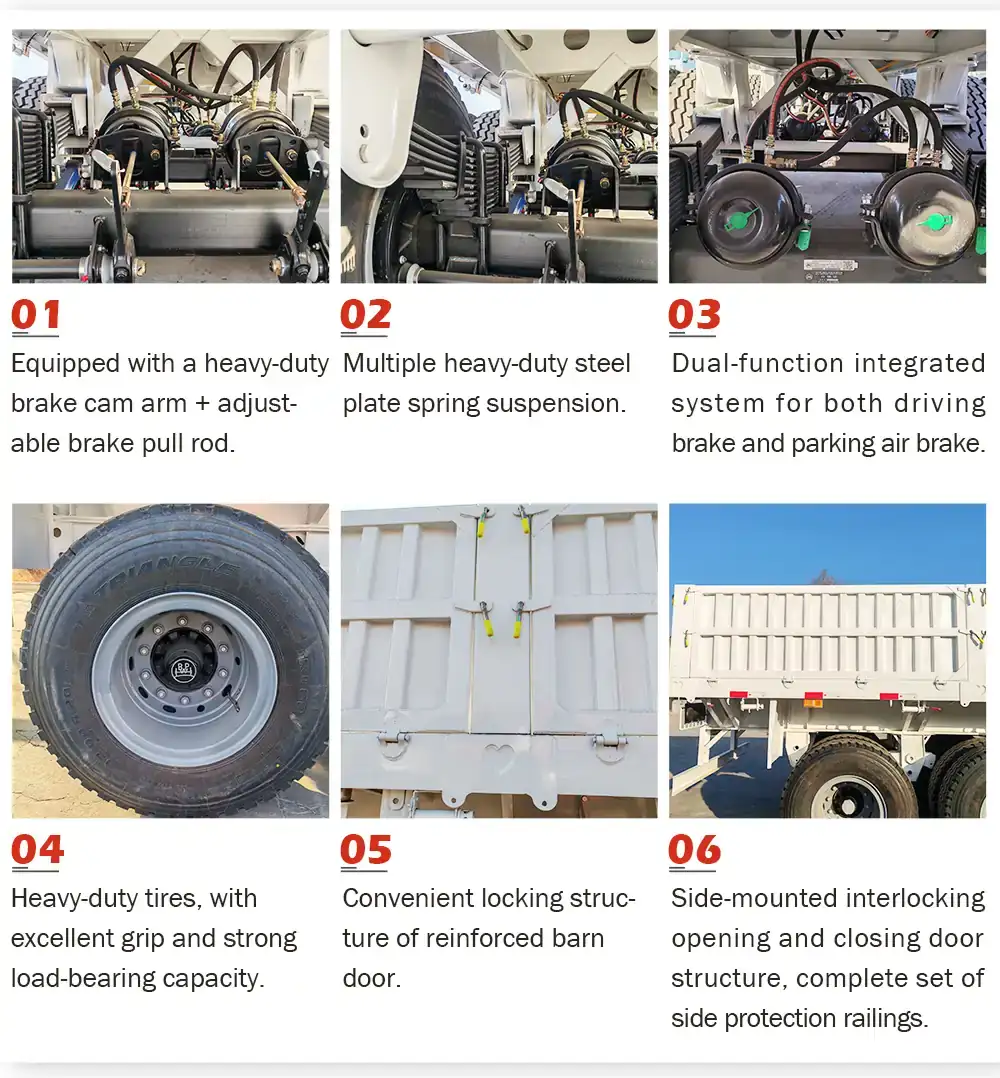

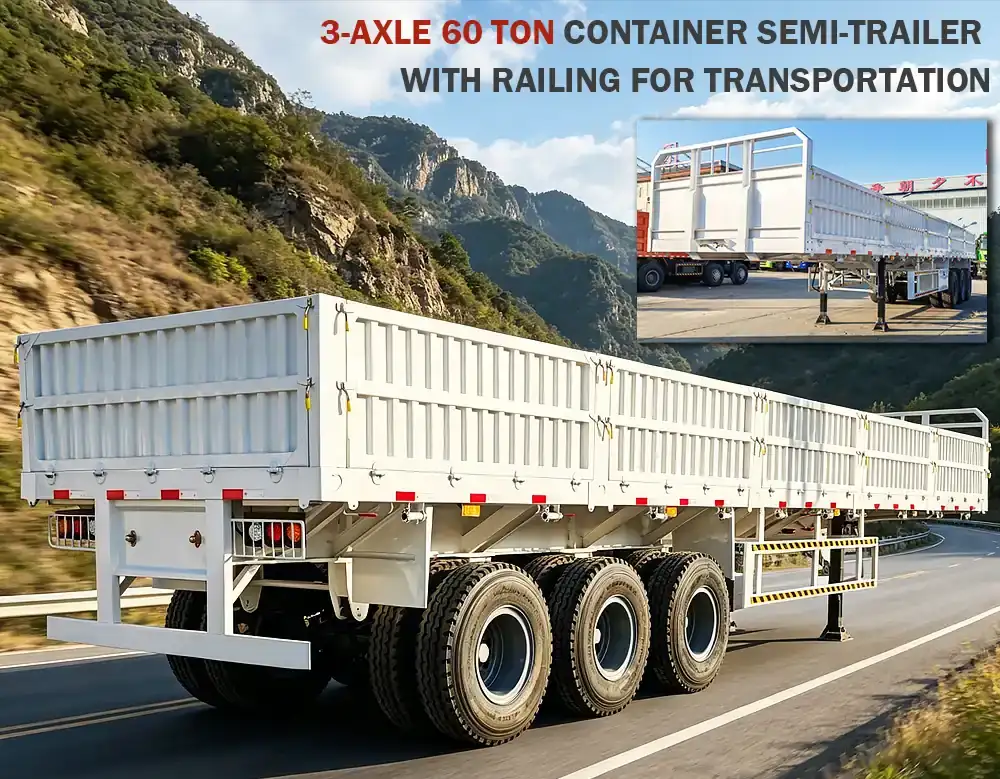

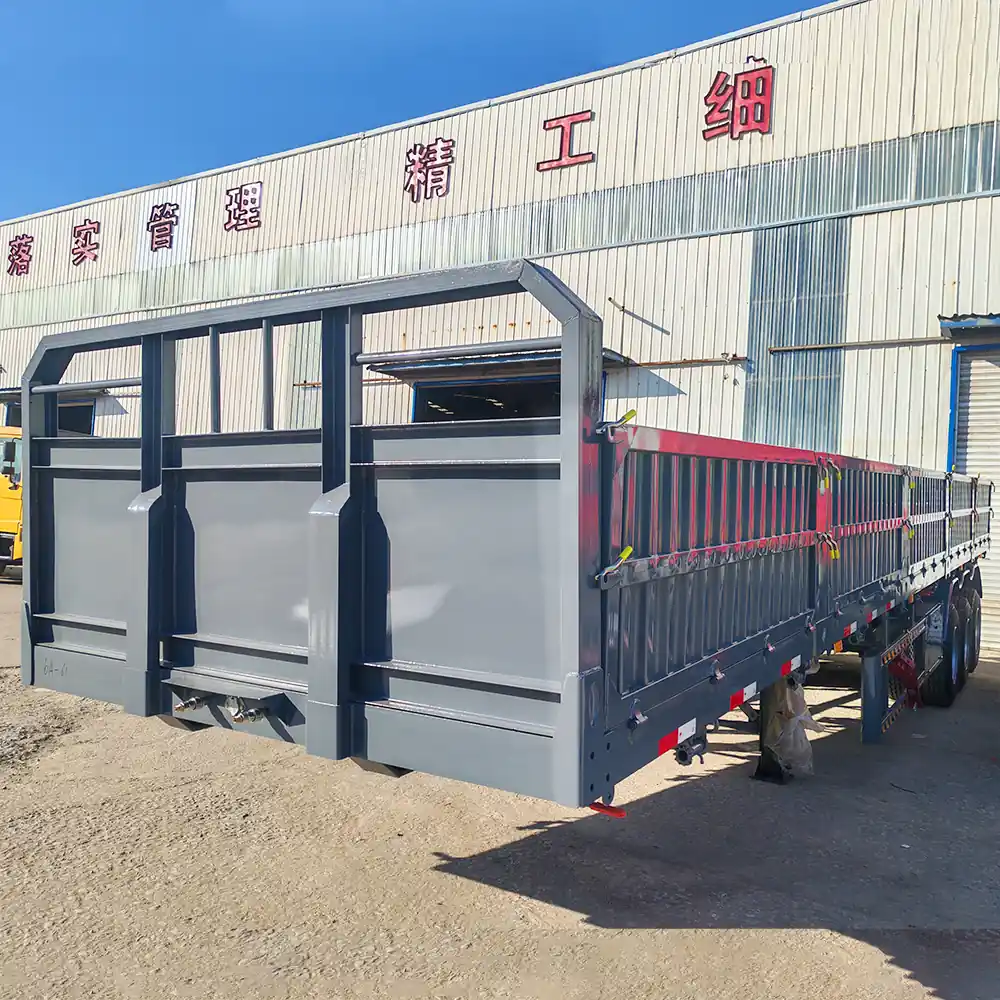

Our three-axis rail semi-trailer adopts a high-strength steel frame and reinforced rail design, providing excellent stability and load-bearing capacity. Equipped with three heavy-duty axles, steel plate spring suspension, and triangular 12.00R20 tires, the open fence structure supports convenient loading and unloading of various goods, and the taillights and safety reflective signs meet international road safety standards, specially designed for harsh working conditions.
Product Parameters
| Specification | Details |
| Product Type | 3 Axle Side Wall Semi Trailer |
| Overall Dimension | 12500mm × 2500mm × 3800mm |
| Cargo Body | High-strength steel, corrugated side panels |
| Axle Type | 3 × Heavy-duty axles (13T/16T optional) |
| Suspension | Leaf spring suspension |
| Tire Specs | 12.00R20 Triangle tires (12 units) |
| Loading Capacity | 40-60 tons (Depends on axle rating) |
| Brake System | Dual-line air brake system |
| Paint | Anti-rust primer + top coat |
Product Details
Ready to enhance your transport efficiency?
Product Application
Comprehensive transportation application, including grain and agricultural product transportation, infrastructure project building materials transportation, daily necessities and miscellaneous goods logistics, coal and mineral bulk material transfer, live livestock and poultry transportation, port and park warehouse distribution, etc.
Packaging And Transportation
We provide real-time logistics tracking updates from the factory to the final destination, allowing you to track the location of your vehicles at any time.
We support sea, land, and heavy vehicle roll on/roll off transportation, flexibly meeting your time and budget needs.
Customer Visits
Our team is very professional,We will reply for you as soon as possible, from product recommendation to order until you receive the product, we will provide you with quality service.We treat our customers as friends. If you can visit our company, you will truly feel our friendliness and enthusiasm.
Ready to enhance your transport efficiency?
Certificate
Our 3-axis side wall trailer has passed international standard certification, ensuring compliance with global road safety and quality regulations. These certifications ensure that every trailer undergoes strict quality control inspections, from raw material inspection to final testing, meeting the highest industry standards for safety, durability, and performance. With certified products, our customers can rest assured that our trailers are reliable, compliant, and perform consistently under various operating conditions.
