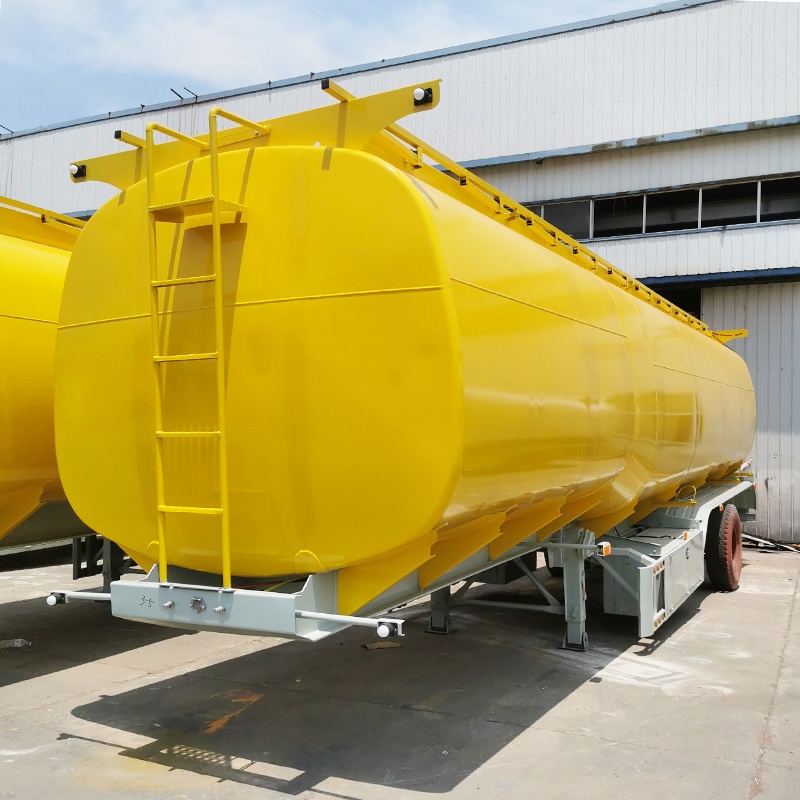

Fuel trailer

Oil tank semi-trailer is a professional transportation tool for large liquid fuel, made of carbon steel or aluminum alloy material, with one-time forming welding process, strong compressive and impact resistance, excellent corrosion resistance, and extended service life. Multiple wave shaped anti wave plates are installed inside the tank to effectively suppress liquid shaking, avoid center of gravity deviation during sudden braking/turning, and improve driving stability. The typical volume is 40-50 cubic meters (approximately 40000-50000 liters), with a single transportation volume far exceeding that of ordinary tank trucks, significantly reducing unit transportation costs and improving logistics efficiency.

Brake air chamber：6 units T30/30 spring brake chambers

Compartment：3 compartments ( 3*14000L )

Axle：14Ton, L1 brand optional FUWA brand， 3Axles，

Tire:12R22.5, 12 pcs. Taitong brand

Steel Spring:10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Fire extinguisher:2 units per trailer

Landing Gear:Standard 28Ton

King pin：2"(50mm)or3.5"(90mm) JOST

Brake System：Dual Line Braking System

Multi compartment separation: 1-12 independent compartments can be customized to achieve separate transportation of different oils/media, avoiding mixing and meeting diverse distribution needs.

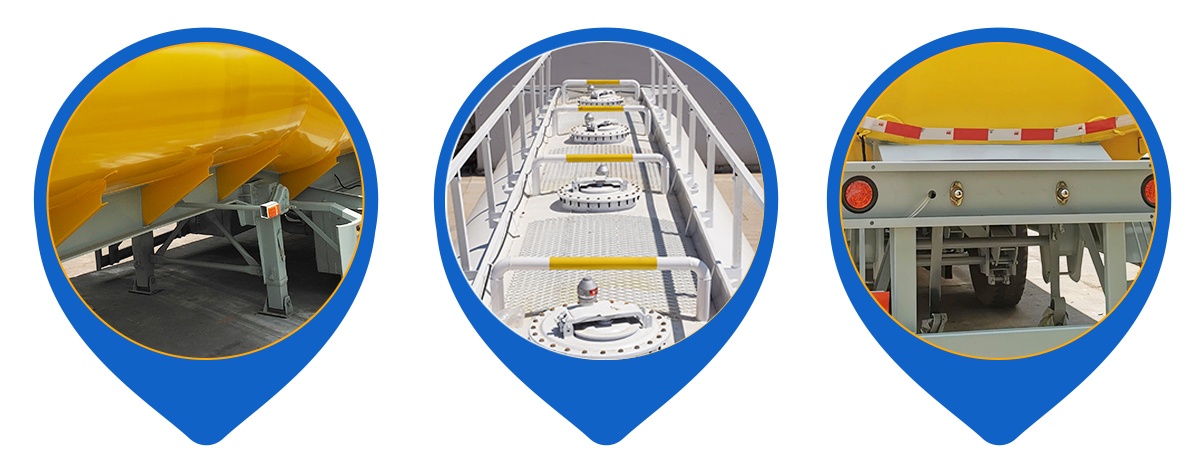

Safety protection device: equipped with explosion-proof manhole cover at the top to prevent danger caused by abnormal pressure inside the tank

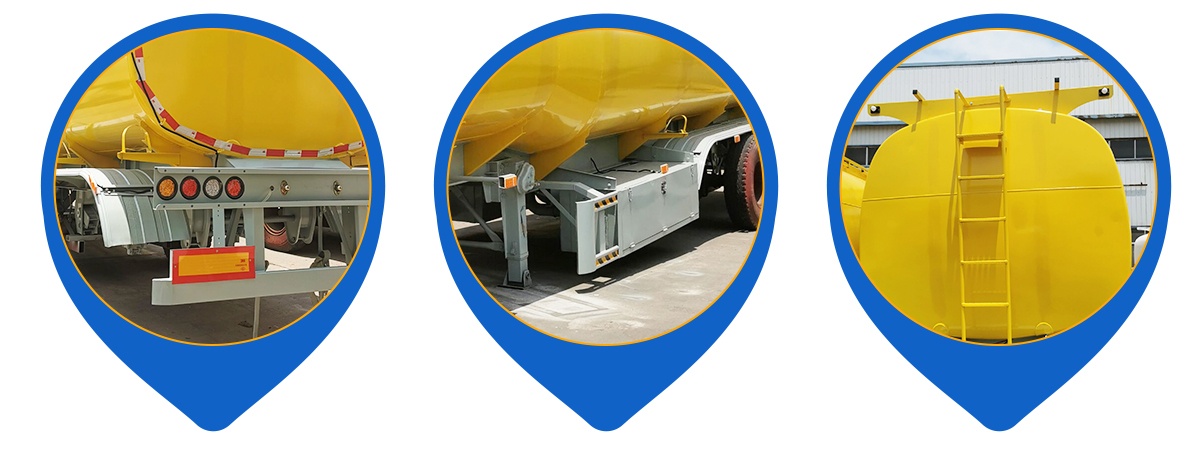

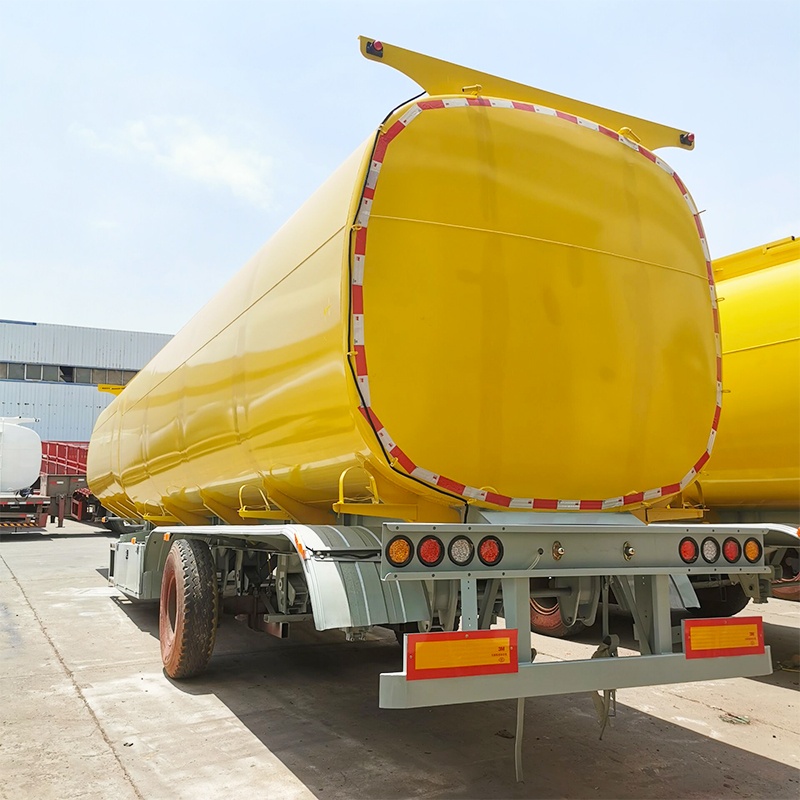

Taillights: Reflective markings at the rear and multiple sets of taillights enhance nighttime driving recognition.

Wave resistant design: Multiple wave shaped wave resistant plates are installed inside the tank to effectively suppress liquid shaking.

Axis: Four axis dispersed pressure, not easy to exceed the limit and not easy to damage the road surface

Long distance trunk transportation: Transporting finished oils such as gasoline, diesel, and aviation kerosene from refineries/oil depots to gas stations, industrial and mining enterprises, or construction sites in various regions.

Multi category transportation: The tank can be divided into multiple independent compartments, allowing for the simultaneous transportation of different grades or types of oil in one trip, avoiding mixed contamination.

Emergency Supply and Reserve: It can serve as a "mobile oil depot" to provide temporary fuel supply for remote construction sites, mines, airports, and other scenarios. It can also be used for fuel reserve during emergency disaster relief.

Chemical liquid transportation: Some models can also transport non flammable and explosive liquid media such as edible oil and alcohol after special anti-corrosion treatment.

Shipping method: Ro-Ro, Bulk cargo, Container These three modes of transportation, we can provide customers with the most economical semi-trailer transportation plan according to the number of semi-trailers required by customers.

Our products are exported to many countries in Africa, Southeast Asia and South America, and customers are also very satisfied with our products and services. We have the ability to solve any problems you may encounter.

Please feel free to contact us if you have any questions. You are also welcome to visit our company.
